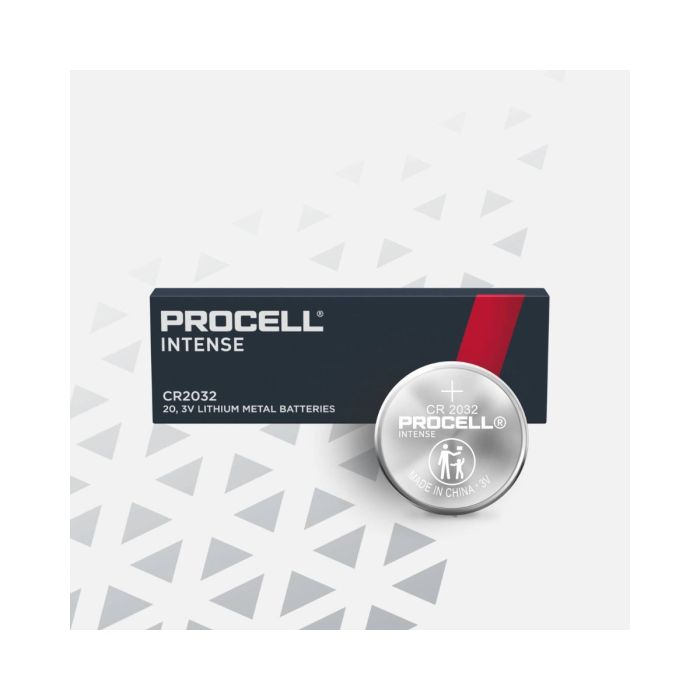

Procell Intense Batteries Lithium Coin 2032 3V 20pk (4 cards of 5) Blk/Red Inner Box
KEY FEATURES
▪ High Cell Capacity & High Energy
▪ High voltage response, stable during most of the lifetime of the application
▪ Reliable Performance
▪ Child-Safe Markings
▪ Wide operating temperature range (-30°C/ + 70°C)
▪ Low self-discharge with long operating life (<1% after 1 year of storage at + 20 °C)
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety and environment standards:
o Safety: IEC 60086-4
o Transport: UN 38.3
o EU Battery Regulation and EU REACH compliance
o Quality: ISO 9001, Duracell World Class Continuous Program
TYPICAL APPLICATIONS
▪ Medical devices
▪ Security Devices
▪ Wireless Sensors
▪ Fitness Devices
▪ Key-Fobs & Trackers
▪ Watches & Fitness Devices
▪ Fitness Devices
Procell Lithium Coin Intense 2032 industrial batteries are designed to deliver reliable and safe power in professional devices. To prevent accidental ingestion by children, Procell has developed tamper-proof packs with double blister so that it is impossible for a child to open without scissors and a bitter taste layer is applied on the back of the cell to discourage swallowing.
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (15k Ohm Cont., 2.0 V cut-off) 260 mAh
▪ Minimum Open Circuit Voltage (OCV) 3.0 V
▪ Standard Continuous Discharge Current 0.6 mA
▪ Maximum Continuous Discharge Current 3 mA
▪ Maximum Pulse Discharge Current at 1 sec 50 mA
▪ Nominal Energy 745 mWh ▪ AC Impedance @ 1kHz 9 Ohm
PHYSICAL CHARACTERISTICS
▪ Typical weight 3.0 g (0.11 oz.)
▪ Li metal content approx. 0.08 g KEY FEATURES
| Primary Sale Unit | PACK |
|---|
