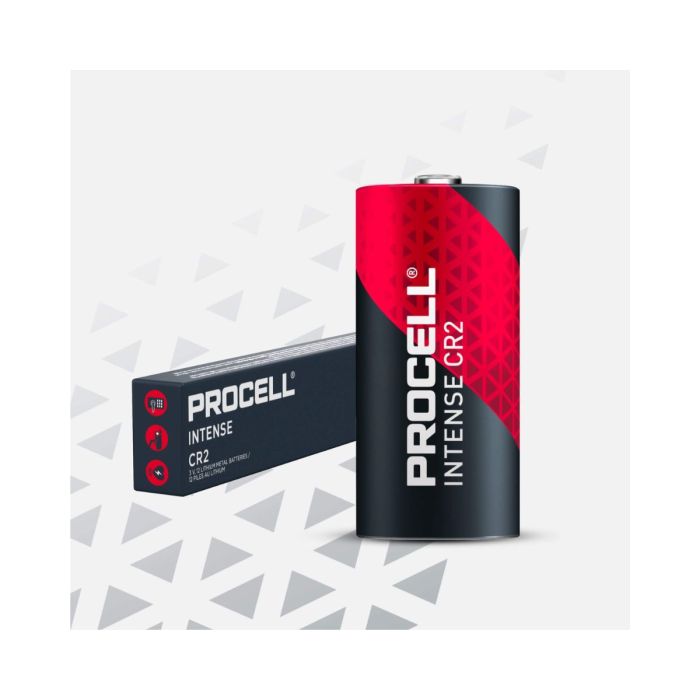

Procell Intense Batteries CR2 12pk Blk/Red Inner Box
KEY FEATURES
▪ Industry Highest Cell Capacity & High Energy
▪ High voltage response, stable during most of the lifetime of the application
▪ Reliable Performance
▪ Wide operating temperature range (-20°C/ + 75°C)
▪ Low self-discharge with long operating life (<1% after 1 year of storage at + 20 °C)
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety, and environment standards:
o Safety: IEC 60086-4 o Transport: UN 38.3
o RoHS and REACH compliance
o Quality: ISO 9001, Duracell World Class Continuous Program
TYPICAL APPLICATIONS
▪ Security Devices (sensors, cameras)
▪ Smoke Detectors
▪ Wireless Sensors
▪ Remote Control
▪ High Intensity Flashlights
▪ Laser Sights
High energy density (3V) with a flat and low self-discharge.
Design, safety, manufacturing, and qualification follow Procell’s stringent battery standards, which incorporate parts of the ANSI and IEC battery standards.
Economically packaged.
High resistance to extreme temperatures from -4°F to 167°F
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (100 Ohm Cont, 2 V cut-off) 920 mAh
▪ Typical Voltage (at +20°C) 3.2-3.3 V
▪ Standard Continuous Discharge Current 20 mA
▪ Maximum Continuous Discharge Current 60 mA
▪ Maximum Abnormal Charge Current 20 mA
▪ Nominal Energy 2.55 Wh
▪ AC Impedance @ 1kHz 500 mOhm
PHYSICAL CHARACTERISTICS
▪ Typical weight 11.0g (0.39 oz.)
▪ Li metal content approx. 0.30 g
| Primary Sale Unit | PACK |
|---|
