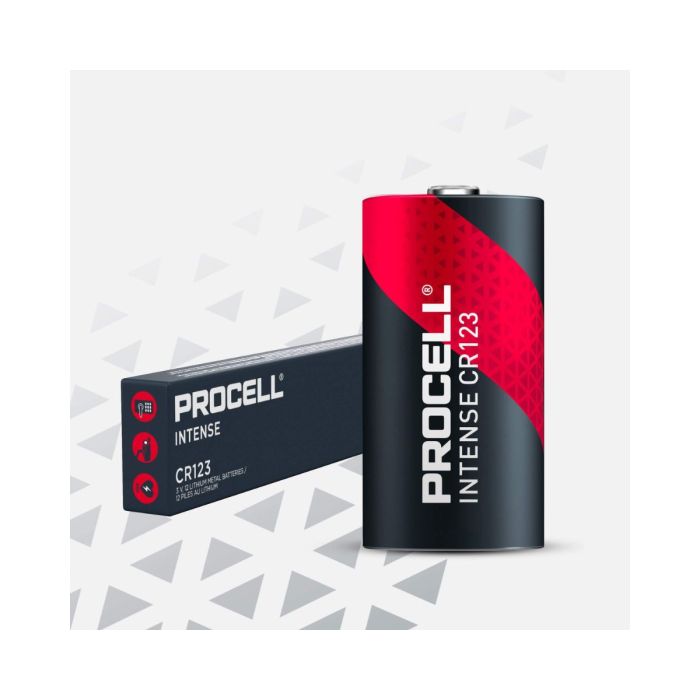

Procell Intense Batteries CR123 12pk Blk/Red Inner Box
KEY FEATURES
▪ Industry Highest Cell Capacity & High Energy
▪ High voltage response, stable during most of the lifetime of the application
▪ Reliable Performance
▪ Wide operating temperature range (-20°C/ + 75°C)
▪ Low self-discharge with long operating life (<1% after 1 year of storage at + 20 °C)
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety, and environment standards:
o Safety: IEC 60086-4
o Transport: UN 38.3
o RoHS and REACH compliance
o Quality: ISO 9001, Duracell World Class Continuous Program
TYPICAL APPLICATIONS
▪ Security Devices (sensors, monitoring cameras)
▪ Smoke Detectors
▪ Wireless Sensors
▪ Door Locks
▪ High Intensity Flashlights
▪ Laser Sights
Procell High Power Lithium Intense CR123 industrial batteries are designed to deliver reliable and safe power in professional devices with high rate discharge under intermittent or continuous drain, such as security equipment.
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (100 Ohm Cont, 2 V cut-off) 1600 mAh
▪ Typical Voltage (at +20°C) 3.2-3.3 V
▪ Standard Continuous Discharge Current 20 mA
▪ Maximum Continuous Discharge Current 60 mA
▪ Maximum Abnormal Charge Current 25 mA
▪ Nominal Energy 4.35 Wh
▪ AC Impedance @ 1kHz 350 mOhm
PHYSICAL CHARACTERISTICS
▪ Typical weight 17.0g (0.60 oz.)
▪ Li metal content approx. 0.53 g
| Primary Sale Unit | PACK |
|---|
