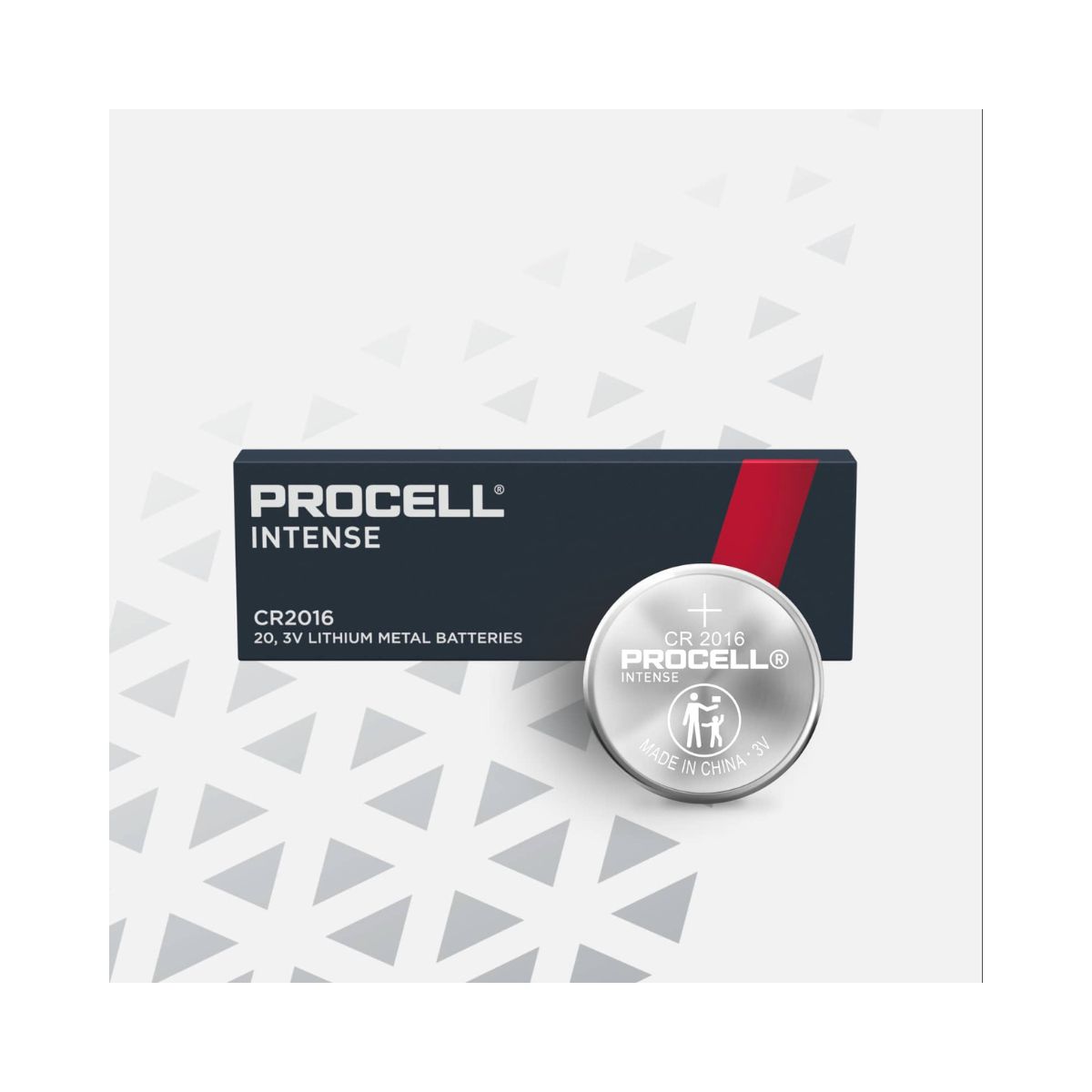

Procell Intense Batteries Lithium Coin 2016 3V 20pk (4 cards of 5) Blk/Red Inner Box
KEY FEATURES
▪ High voltage response, stable during most of the lifetime of the application
▪ Reliable Performance
▪ Child-Safe Markings
▪ Wide operating temperature range (-20°C/ + 60°C)
▪ Low self-discharge with long operating life (<1% after 1 year of storage at + 20 °C)
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety and environment standards:
o Safety: IEC 60086-4
o Transport: UN 38.3
o REACH compliance
o Quality: ISO 9001, Duracell World Class Continuous Program
TYPICAL APPLICATIONS
▪ Security Devices
▪ Medical Devices
▪ Fitness Devices & Watches
▪ Wireless Sensors
▪ Key-Fobs
▪ Bluetooth Trackers

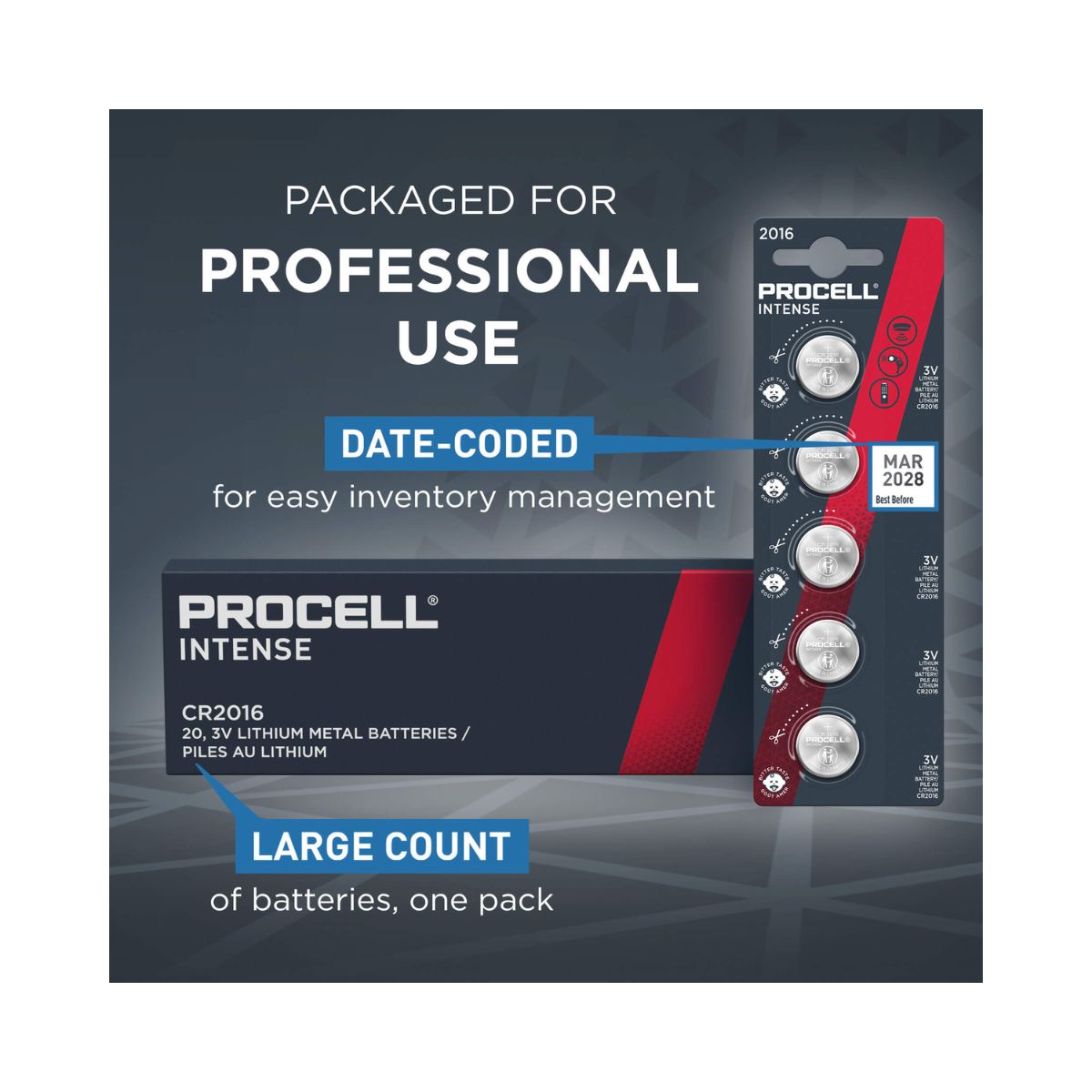

Procell Lithium Coin Intense 2016 industrial batteries are designed to deliver reliable and safe power in professional devices. To prevent accidental ingestion by children, Procell has developed tamper-proof packs with double blister so that it is impossible for a child to open without scissors and a bitter taste layer is applied on the back of the cell to discourage swallowing.
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (15k Ohm Cont., 2.0 V cut-off) 85 mAh
▪ Nominal Voltage (at +20°C) 3.0 V
▪ Standard Continuous Discharge Current 0.1 mA
▪ Maximum Continuous Discharge Current 6 mA
▪ Maximum Pulse Discharge Current at 1 sec 20 mA
▪ Nominal Energy 255 mWh
▪ AC Impedance @ 1kHz 8.5 Ohm
PHYSICAL CHARACTERISTICS
▪ Typical weight 1.75 g (0.061 oz.)
▪ Li metal content approx. 0.024 g
| Primary Sale Unit | PACK |
|---|
